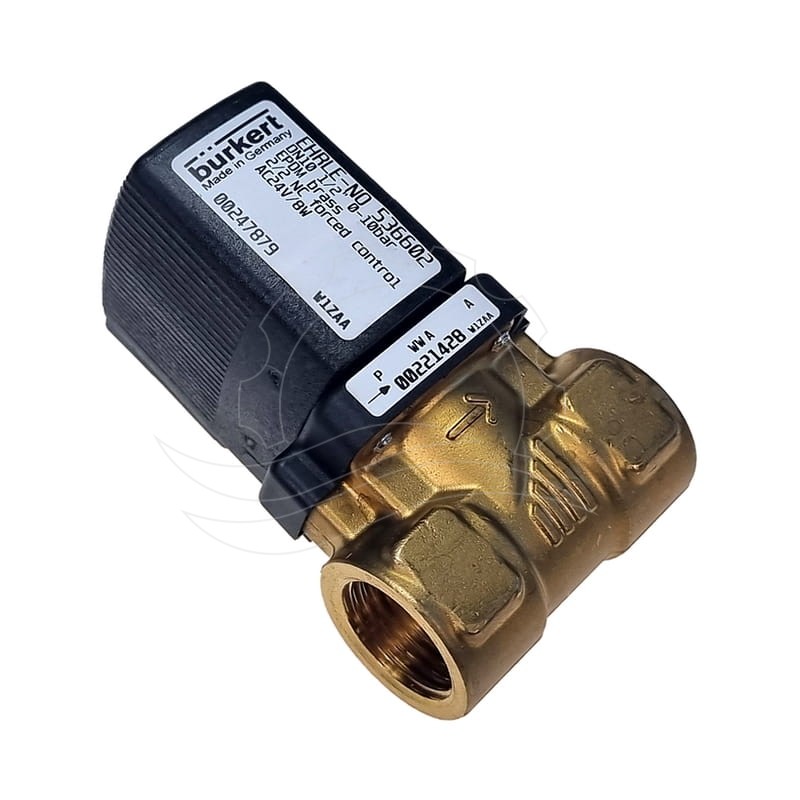

Bürkert 6213 solenoid valve 0-10bar DN10 G1/2'' EPDM MS 24V AC
Vendor:
Product code:
VC-032
Description
Bürkert solenoid valve. Factory-installed in Ehrle Modulline car washes. It has multiple applications: MV3 (opens the anti-freeze system water flow to the pressure pump), MV11 (safety solenoid valve allowing softened water into the polishing program), MV12 (triggers the refilling of the WAB sump). These solenoid valves also control the operation of the reverse osmosis system.
TECHNICAL DATA
- Manufacturer code: 00247879
- Type: 6213EV
- Type: Normally Closed
- Differential pressure: 0-10bar
- Flow diameter: DN10
- Connection thread: G1/2''
- Body material: Brass
- Seal material: EPDM
- Supply voltage: 24V AC
- Coil power: 8W
