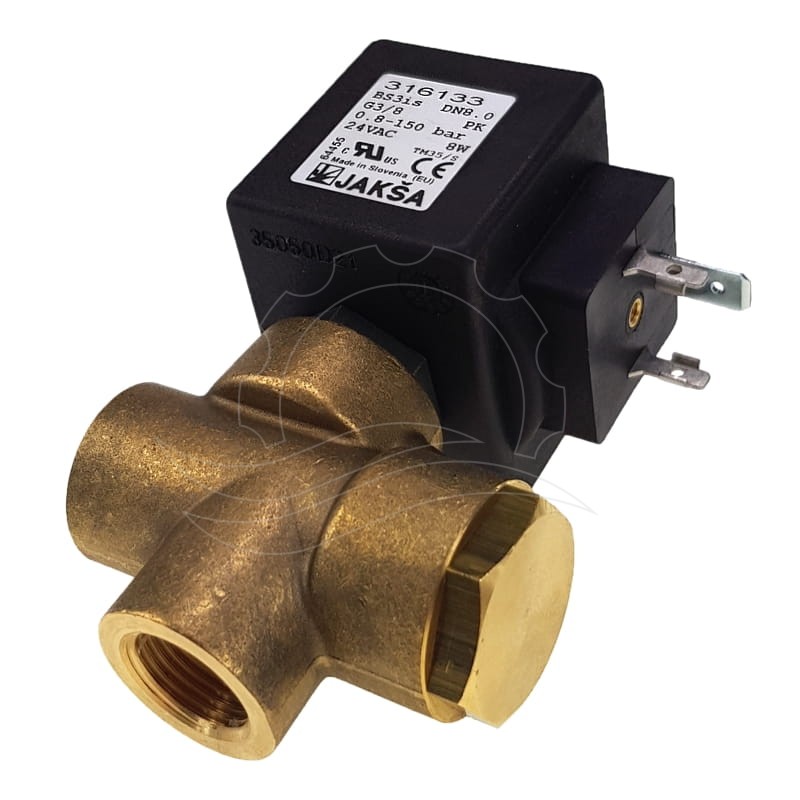

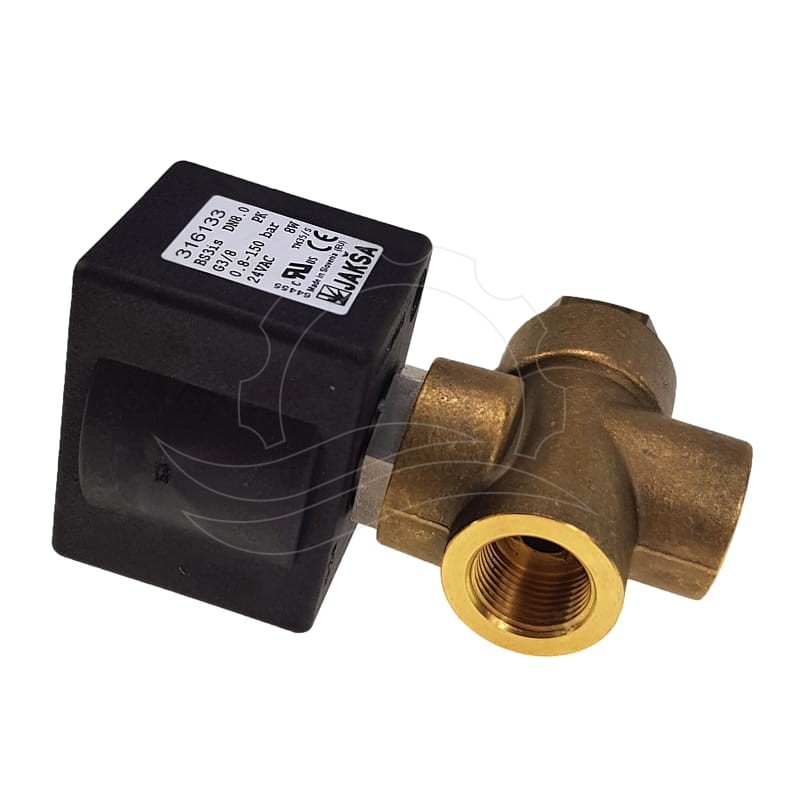

Jakša BS3is solenoid valve 0.8-150bar G3/8'' PK 24V AC (316133)
Vendor:
Product code:
VC-014
Description
Solenoid valve manufactured by Jakša. Normally closed. Coil powered by 24V AC voltage. Used in Ehrle car washes with an additional active foam washing program, among others. The solenoid valve opens the flow of high-pressure water to the selected lance. Marked as MV16 (standard lance) and MV17 (foam gun). There is a VK-009 repair kit for this model.
TECHNICAL DATA
- Manufacturer code: 316133
- Type: BS3is
- Type: Normally closed
- Differential pressure: 0.8-150bar
- Flow diameter: DN8
- Connection thread: G3/8''
- Body material: Brass
- Sealing material: PEEK
- Supply voltage: 24V AC
- Coil power: 8W
