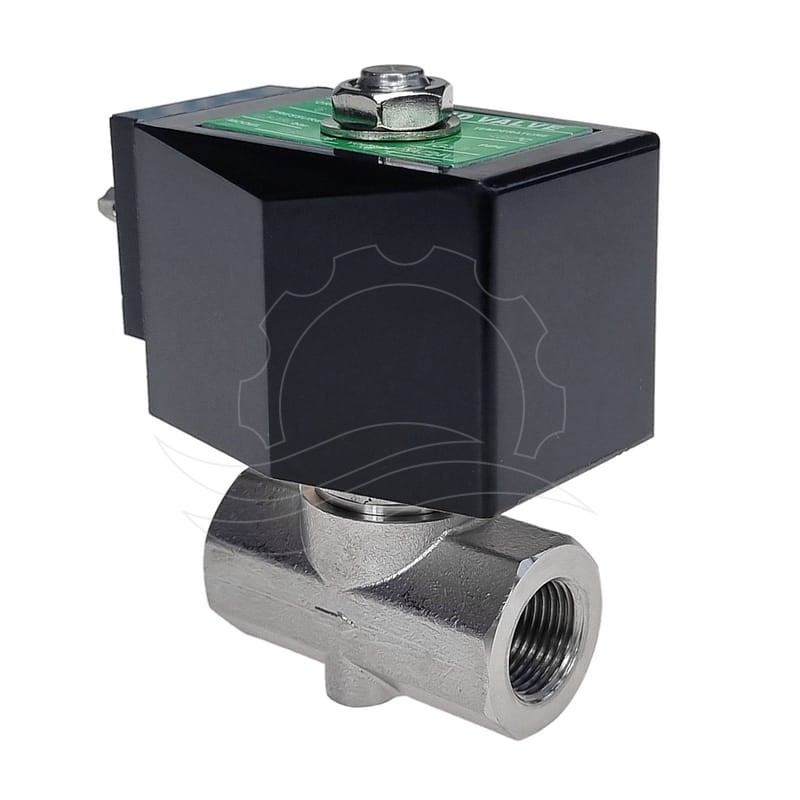

Solenoid valve GSPG-06 0.5-150bar G3/8'' PEEK 24V AC
Vendor:
-
Product code:
VC-067
Description
High-pressure stainless steel solenoid valve. Coil powered by 24V alternating current. 3/8'' connection. Permissible operating temperature 80°C. It can be used as a solenoid valve that switches the flow of high-pressure water to the selected lance. It is a suitable replacement for Jakša 316133 valves (VC-014) or M&M D635DTT1 valves (VC-026).
DANE TECHNICZNE
- type: GSPG-06
- operation: normally closed
- differential pressure: 0.5-150bar
- flow diameter: 6mm
- connection thread: G3/8''
- body material: stainless steel
- seal material: PEEK
- supply voltage: 24V AC
- coil power: 25W
