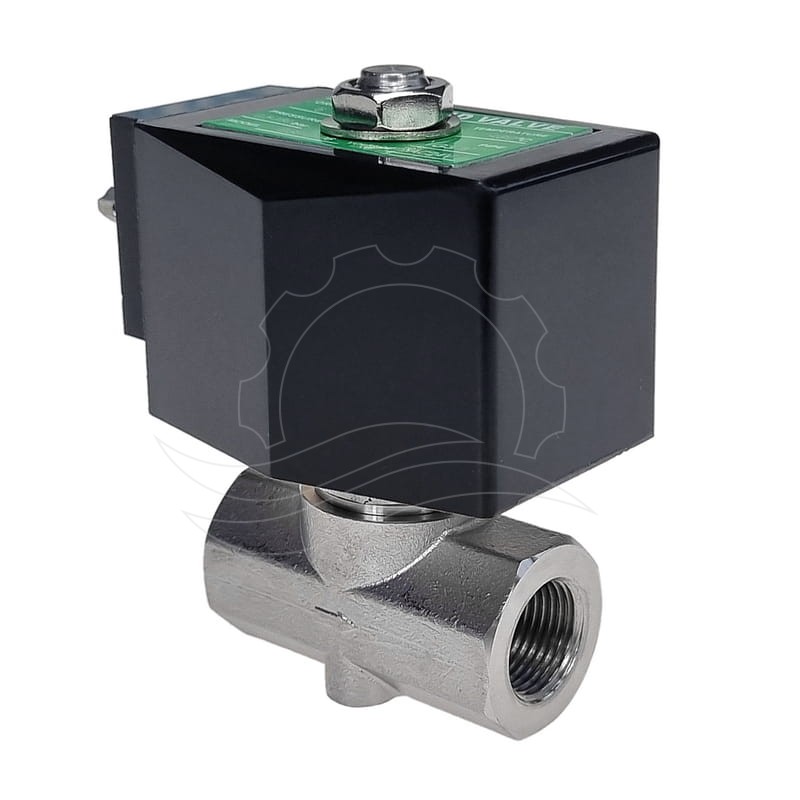

Solenoid valve GSPG-06 0.5-150bar G3/8'' PEEK 24V DC
Vendor:
-
Product code:
VC-066
Description
High-pressure solenoid valve made of stainless steel. Coil powered by 24V DC. 3/8" connection. Permissible operating temperature 80°C. Can be used as a solenoid valve to switch the flow of high-pressure water to a selected lance. It can successfully replace the popular 316132 valves from Jakša (VC-014).
TECHNICAL DATA
- Type: GSPG-06
- Type: Normally closed
- Differential pressure: 0.5-150bar
- Flow diameter: 6mm
- Connection thread: G3/8''
- Body material: Stainless steel
- Seal material: PEEK
- Supply voltage: 24V DC
- Coil power: 25W
